Abstract

Large Language Models (LLMs) are accelerating scientific idea generation, but rigorously evaluating these numerous, often superficial, AI-generated propositions for novelty and factual accuracy is a critical bottleneck; manual verification is too slow. Existing validation methods are inadequate: LLMs as standalone verifiers may hallucinate and lack domain knowledge (our findings show ~60% unawareness of relevant papers in specific domains), while traditional citation networks lack explicit causality and narrative surveys are unstructured. This underscores a core challenge: the absence of structured, verifiable, and causally-linked historical data of scientific evolution. To address this, we introduce THE-Tree (Technology History Evolution Tree), a computational framework that constructs such domain-specific evolution trees from scientific literature. THE-Tree employs a search algorithm to explore evolutionary paths. During its node expansion, it utilizes a novel "Think-Verbalize-Cite-Verify" process: an LLM proposes potential advancements and cites supporting literature. Critically, each proposed evolutionary link is then validated for logical coherence and evidential support by a recovered natural language inference mechanism that interrogates the cited literature, ensuring that each step is grounded. We construct and validate 88 THE-Trees across diverse domains and release a benchmark dataset including up to 71k fact verifications covering 27k papers to foster further research. Experiments demonstrate that i) in graph completion, our THE-Tree improves hit@1 by 8% to 14% across multiple models compared to traditional citation networks; ii) for predicting future scientific developments, it improves hit@1 metric by nearly 10%; and iii) when combined with other methods, it boosts the performance of evaluating important scientific papers by almost 100%. By constructing explicit, verifiable pathways of scientific progression, THE-Tree provides a robust historical foundation for evaluating new hypotheses (human or AI-generated) and enables a computable science history, fostering evidence-based AI-driven scientific discovery.

🌟Overview

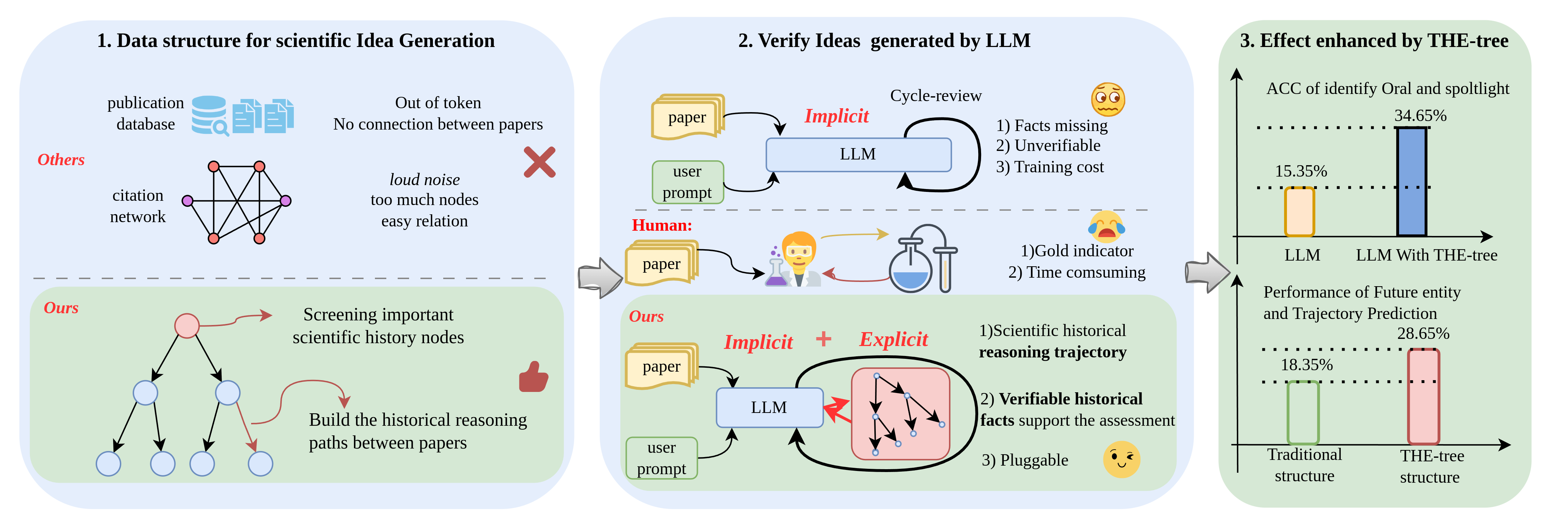

Automating scientific discovery has been a long-standing goal. While Large Language Models (LLMs) offer new avenues for hypothesis generation, a critical bottleneck remains: the effective evaluation and validation of scientific ideas. Current validation approaches face several critical challenges, including the time-consuming nature of manual verification and the limitations of automated validation using LLMs, such as hallucination and bias.

To address this, we propose leveraging the authentic patterns and causal evolutionary pathways from scientific history for more reliable assessment. We introduce THE-Tree (Technology History Evolution Tree), a computational framework to construct structured, verifiable, domain-specific technology evolution trees from scientific literature. THE-Tree builds a topic's evolution by representing individual papers as nodes and the inferential relationships between them as edges, providing a solid factual basis and clear historical context for evaluating new hypotheses.

Our main contributions are:

A novel computational framework, THE-Tree, to construct and validate verifiable technology evolution trees from scientific literature.
A Retrieval-Augmented Natural Language Inference (RA-NLI) mechanism for rigorous validation of the logical and causal coherence of evolutionary relationships.
The construction and validation of a THE-Trees dataset, comprising 88 technology evolution trees and a benchmark of 71k fact verification evaluations.
A structured foundation for evaluating scientific ideas and supporting grounded AI-driven discovery processes.

Interactive THE-Tree Example: The Evolution of Natural Language Processing

Click on a node (paper) or an edge (relation) to see details. Drag nodes to rearrange.

🔍 THE-Tree as Scientific Verifier

We introduce the THE-Tree (Technology History Evolution Tree) as a structured representation of scientific evolution. In a THE-Tree, each scientific paper is a node with rich metadata, and edges represent historical, inferential, and evolutionary relationships. Unlike traditional citation networks, edges in THE-Tree have deep semantic meaning, signifying causal contributions and logical foundations.

Leveraging THE-Tree for Verification

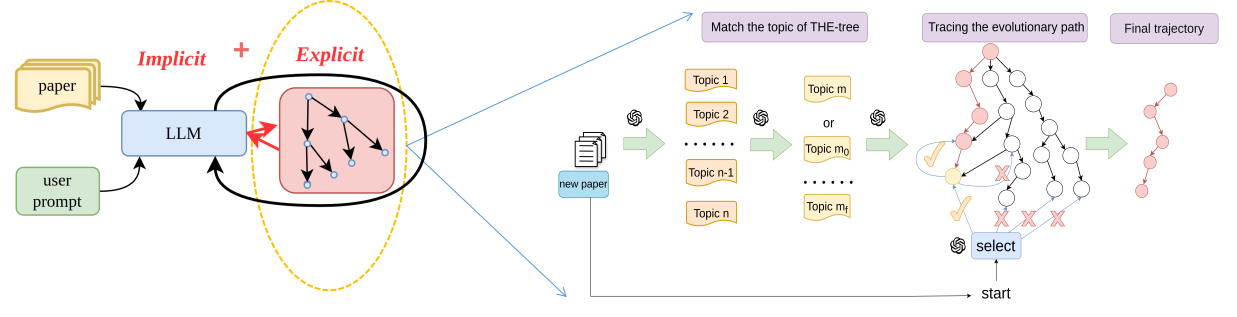

Once constructed, a THE-Tree serves as a powerful instrument for verifying and contextualizing new scientific ideas. The process involves identifying the relevant topic space for a new paper, originating candidate paths in the corresponding THE-Tree, and performing historical path retrospection to situate the new research within established knowledge frameworks.

Automated Construction of THE-Tree

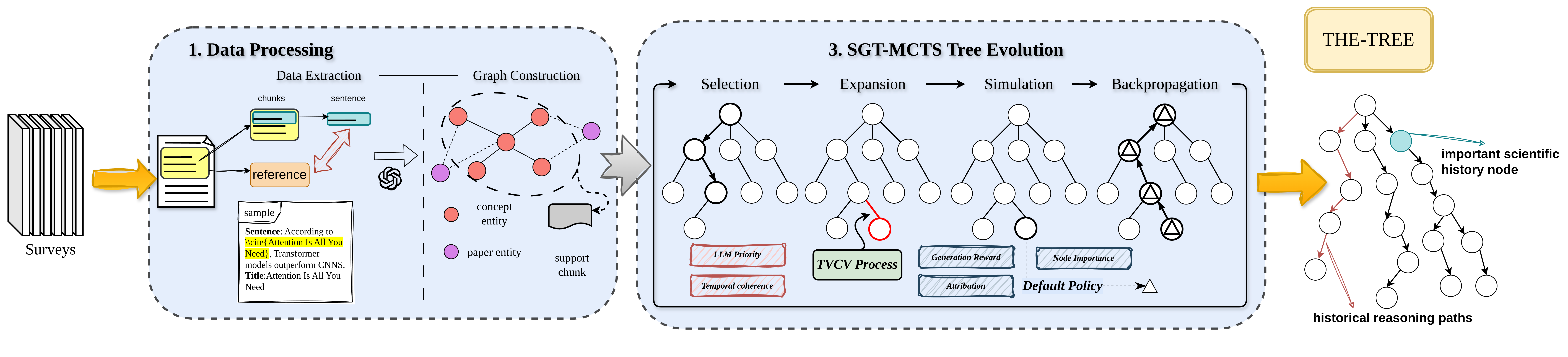

THE-Tree Construction Pipeline Overview

The manual construction of comprehensive and accurate THE-Trees for diverse scientific domains would be a prohibitively laborious task. Therefore, we develop a computational framework for the automated construction of THE-Trees from scientific literature. Our approach formulates this construction as an optimization problem to find paths in scientific literature that maximize a composite reward, reflecting node importance and path coherence:

\[ \max_{\text{Path}} \left( \sum_{v \in \text{Path}} S(v) + R_{\text{gen}} + R_{\text{attr}} \right) \]

Here, \(S(v)\) is the importance score of a paper, \(R_{\text{gen}}\) reflects path coherence, and \(R_{\text{attr}}\) validates the link between nodes. This objective is pursued using a Self-Guided Temporal Monte Carlo Tree Search (SGT-MCTS) algorithm. The selection of nodes during this search is guided by a SGT-UCT formula that incorporates LLM guidance and temporal coherence:

\[ \text{SGT-UCT}(v) = \left(\frac{Q(v)}{N(v)} + c \cdot \sqrt{\frac{\ln N(p)}{N(v)}} + \lambda \cdot \text{LLM}_{\text{priority}}(v)\right)\cdot \text{TempCoherence}(v | P_{prev}) \]

This formula balances exploitation (\(Q(v)/N(v)\)), exploration (\(c \cdot \sqrt{\ln N(p)/N(v)}\)), and LLM-guided priority, modulated by temporal coherence to ensure chronological consistency.

The construction pipeline consists of several key stages:

Dataset Construction: Building a foundation from authoritative scientific surveys.
Self-Guided Temporal Monte Carlo Tree Search (SGT-MCTS): An algorithm to navigate the vast space of potential evolutionary paths.
Think-Verbalize-Cite-Verify (TVCV): A methodology for node expansion within the SGT-MCTS. This process systematically generates, grounds, and validates new nodes (potential technological advancements) and their links within the tree:
- Think: The LLM generates candidate technological advancements.
- Verbalize: The LLM summarizes these ideas into concise propositions.
- Cite: The LLM retrieves supporting scientific literature to ground the proposition.
- Verify: The proposed relationship is rigorously validated for logical and causal coherence.
Retrieval-Augmented Natural Language Inference (RA-NLI): This mechanism performs the crucial "Verify" step. It uses a specialized NLI model to check if the new scientific contribution is logically entailed by the cited evidence, ensuring the soundness of each evolutionary link.

📊 Experiments

We conducted a series of experiments to validate the capabilities of THE-Tree in enhancing scientific evaluation, reconstructing technological trajectories, and predicting future scientific developments. For detailed information on dataset construction and evaluation metrics, please refer to the supplementary materials at the end of this page.

Experiment 1: THE-Tree Verifier for Scientific Evaluation

We investigated whether THE-Tree can enhance the verification capabilities of Large Language Models (LLMs) for evaluating scientific papers. The experiment focused on assessing NeurIPS 2024 submissions, leveraging THE-Tree to provide factual grounding and historical context to various LLMs.

**Impact of THE-Tree Augmentation on LLM-based NeurIPS Paper Evaluation.** The table compares the performance of various LLMs in predicting paper acceptance/rejection and status (Poster, Spotlight, Oral) for NeurIPS 2024, with and without THE-Tree augmentation. Red text indicates improved performance with THE-Tree.
Model	NeurIPS 2024
	Accuracy of accept and reject			Accuracy of Status
	Acc%	Rej%	Total%	Poster%	Spot%	Oral%	Total%
Without THE-tree Augmentation
Qwen2.5-72b-instruct	99.63	0	25.70	1.24	100	0	2.42
Deep-Reviewer-14b	92.61	18.28	37.45	74.03	22.77	6.94	31.03
Deep-Reviewer-7b	86.79	19.78	37.07	60.42	19.05	0	28.9
GPT-4o	99.63	2.24	26.02	29.46	86.96	0	10.26
Claude-3.5-Sonnet	99.75	0.38	27.28	10.90	77.96	18.57	4.59
Deepseek-R1	100.0	2.00	26.03	54.13	53.31	0	15.00
With THE-tree Augmentation
Qwen2.5-72b-instruct	99.84	0.37	26.03	1.76	97.38	0	2.76
Deep-Reviewer-14b	89.93	22.39	39.82	63.2	34.55	34.72	32.08
Deep-Reviewer-7b	76.12	63.69	66.90	57	24.99	2.33	60.84
GPT-4o	99.66	2.66	27.69	34.45	72	2.6	11.41
Claude-3.5-Sonnet	71.46	36.57	45.57	28.72	38.13	36.57	34.81
Deepseek-R1	99.57	3.42	28.23	56.49	56.66	2.6	16.68

The results indicate that by providing scientific evolutionary context, THE-Tree significantly enhances the LLM's capability to determine paper acceptance. The data highlighted in red shows the performance after using THE-Tree, demonstrating a notable improvement in the model's ability to reject low-quality submissions and identify high-impact papers (Orals, Spotlights), in some cases nearly doubling the accuracy.

Case Studies for Scientific Evaluation

To better illustrate the impact, we analyzed the performance of the DeepReviewer-14b model. The figure below shows the recall of correctly predicted important papers over time. Methods enhanced with THE-Tree consistently identify more important papers compared to baselines.

Furthermore, with THE-Tree, its predictions for high-impact papers (Oral or Spotlight) shift more decisively towards the correct, higher-quality categories. In a specific analysis of the paper "Neural Pfaffians" (ground truth: Oral), the LLM without THE-Tree rated it as "poster", whereas the augmented LLM correctly predicted its status as "oral", demonstrating a more nuanced understanding of the paper's novelty and impact.

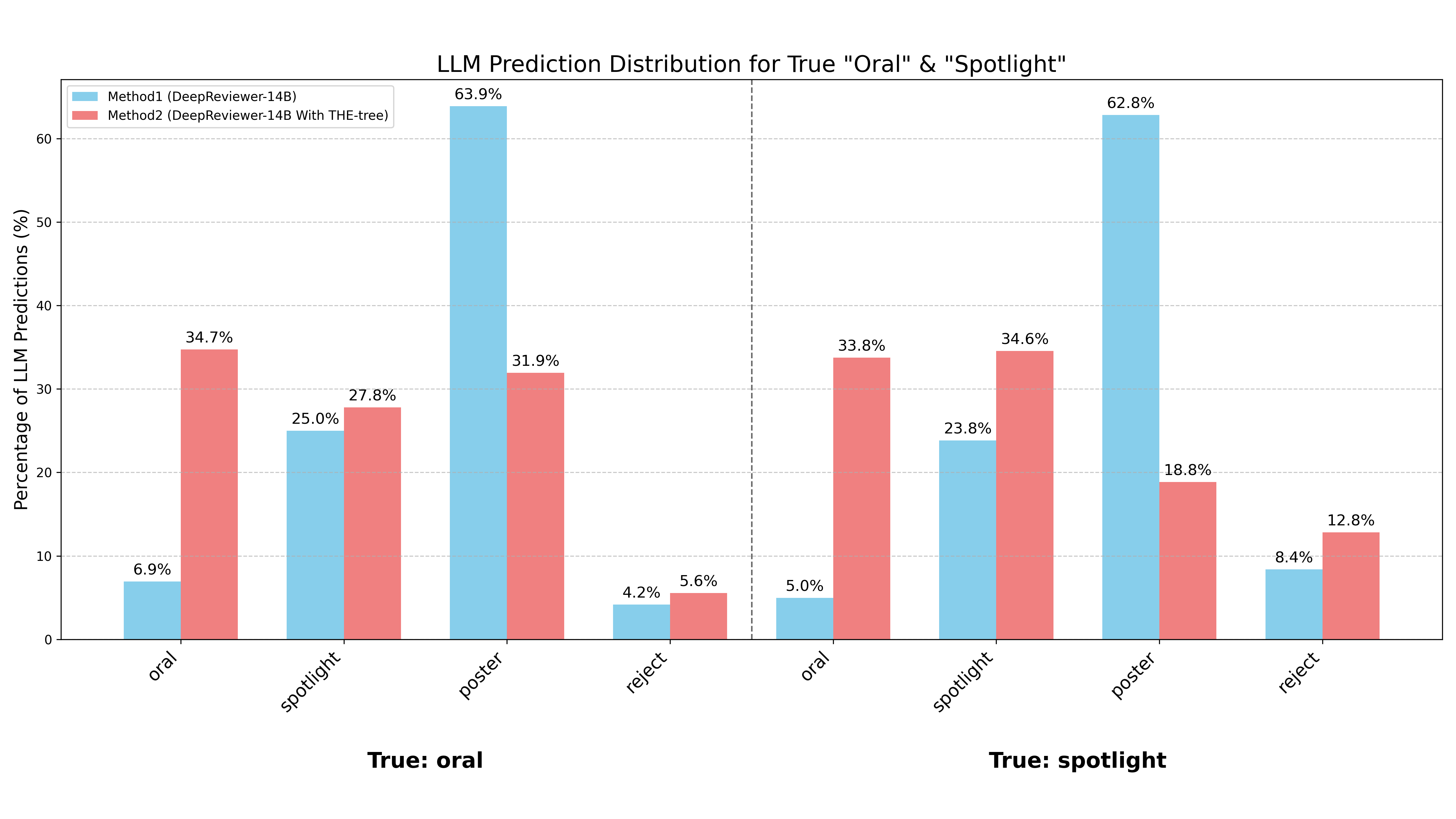

Prediction distribution for high-impact papers shifts with THE-Tree.

Experiment 2: THE-Tree Quality Validation

We validated the quality of the constructed THE-Trees from two perspectives: the effectiveness of the underlying validation mechanism (RA-NLI) and the quality of the reconstructed trees compared to an expert-refined ground truth.

Effectiveness of RA-NLI

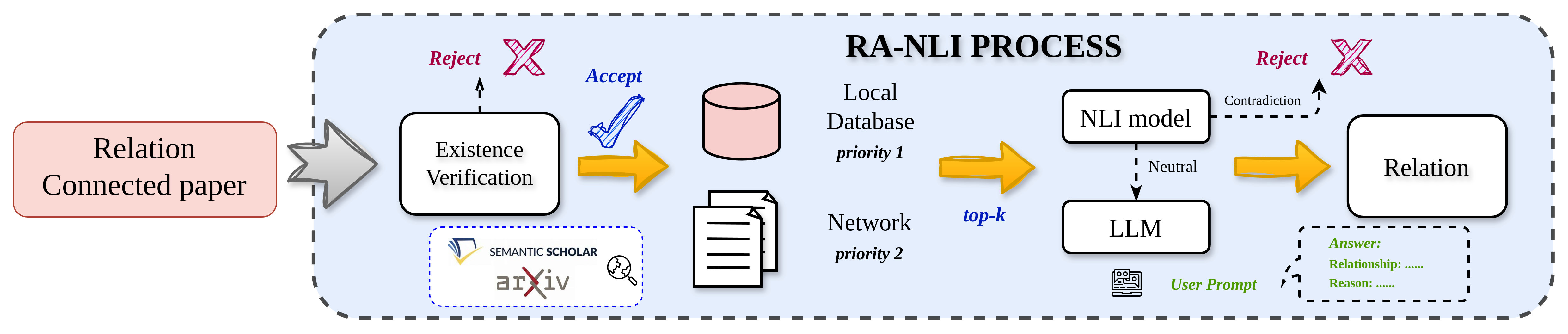

Our Retrieval-Augmented Natural Language Inference (RA-NLI) system is crucial for validating the evolutionary links within a THE-Tree. We compared its accuracy and fact-consistency against several SOTA models. The validation process can be formalized as follows, where for a given pair of technology nodes \(v_i\) and \(v_j\), we compute the attribution relationship:

\[ R_{\text{attr}}(v_i \to v_j) = \alpha \cdot \text{NLI}(s_i, s_j) + (1-\alpha) \cdot \text{LLM}_{\text{eval}}(s_i, s_j, C) \]

Here, \(s_i\) and \(s_j\) are textual descriptions, \(C\) is retrieved context, and \(\alpha\) is a weighting parameter (0.7). As shown below, our RA-NLI method demonstrates a significantly lower fact-missing rate and the highest overall accuracy.

**Comparison of Methods for Technology Tree Relationship Verification**
Method	Fact Missing Rate (%)	Accuracy (%)
Claude 3.5 Sonnet	47.93	60.22
GPT-4o	58.19	60.18
DeepSeek R1	48.16	76.40
Qwen 2.5-72B	58.29	53.95
DeepReviewer-7B	40.88	93.95
DeepReviewer-14B	68.84	76.41
LLaMA 3.1	42.29	60.40
Factual Supplement
Claude 3.5 Sonnet w/ Fact	-	65.34
GPT-4o w/ Fact	-	69.40
DeepSeek R1 w/ Fact	-	81.60
Qwen 2.5-72B w/ Fact	-	66.80
DeepReviewer-7B w/ Fact	-	95.38
DeepReviewer-14B w/ Fact	-	82.09
LLaMA 3.1 w/ Fact	-	65.35
RA-NLI (Ours)	4.75	95.60

Technology Trajectory Reconstruction Quality

We compared MCTS-generated THE-Trees against an expert-refined ground truth. The results show that our method achieves strong performance in recalling entities and relations validated by experts, with reasonable precision and F1-scores.

**Quantitative Comparison of THE-Tree Reconstruction Quality**
Method	Entity				Relation
Method	Recall	Precision	F1	Avg_Time_Diff	Recall	Precision	F1
Expert	1.00	1.00	1.00	2.93	1.00	1.00	1.00
THE-Tree	0.84	0.67	0.75	3.08	0.78	0.64	0.70

Structural and Semantic Properties: Graph Completion

We evaluated THE-Tree's ability to represent scientific knowledge structures via a graph completion task. This involved predicting missing evolutionary entities from a given year, using prior years' data as history. THE-Tree robustly outperformed traditional citation graphs, showcasing its superior efficacy in modeling latent knowledge structures.

**Comparison of Graph Completion Performance Between THE-Tree and Traditional Citation Graphs**
Model	Hit@1 (↑)	Hit@3 (↑)	Hit@5 (↑)	MR (↓)	MRR (↑)
Graph built with Traditional Citations Relation
Qwen2.5-72b	0.585	0.848	0.911	1.806	0.763
Qwen2.5-32b	0.299	0.631	0.796	3.127	0.528
Qwen2.5-7b	0.253	0.679	0.810	3.078	0.511
Gemma-7b	0.163	0.627	0.786	3.497	0.436
Graph built with Our Reasoning Relation
Qwen2.5-72b	0.721	0.906	0.931	1.427	0.859
Qwen2.5-32b	0.371	0.739	0.856	2.577	0.605
Qwen2.5-7b	0.259	0.707	0.815	2.995	0.521
Gemma-7b	0.240	0.656	0.798	3.269	0.490

Experiment 3: Future Scientific Discovery Prediction

To assess THE-Tree's proficiency in capturing scientific evolutionary dynamics, we conducted a future path prediction task. The goal was to forecast 'reasonable next steps' in research trajectories, given a THE-Tree constructed with data up to a certain year.

**Comparison of THE-Tree and Citation Graph on Future Path Prediction.**
Model	Graph	Entity					Relation
Model	Graph	Hit@1 (↑)	Hit@3 (↑)	Hit@5 (↑)	MR (↓)	MedianRank (↓)	Hit@1 (↑)	Hit@3 (↑)	Hit@5 (↑)	MR (↓)	MedianRank (↓)
Qwen2.5-72b	Citation	0.1831	0.5421	0.7423	3.6210	3.5149	0.1262	0.2940	0.4002	4.5318	4.3731
Qwen2.5-72b	THE-tree	0.2813	0.6073	0.7746	3.3961	3.2288	0.1693	0.3143	0.4154	4.2892	4.0547
Qwen2.5-32b	Citation	0.1078	0.4079	0.6189	4.5388	4.3515	0.1452	0.2779	0.3862	4.6621	4.6188
Qwen2.5-32b	THE-tree	0.1500	0.4906	0.6894	4.0494	3.9064	0.1522	0.2987	0.4073	4.4674	4.3128
Gemma-7b	Citation	0.1652	0.6037	0.7550	3.4445	3.4005	0.1022	0.2610	0.3790	4.8544	4.8632
Gemma-7b	THE-tree	0.2431	0.6250	0.7798	3.3706	3.3276	0.1243	0.2674	0.3849	4.7426	4.7069

The results show that methods enhanced with THE-Tree consistently identify more important future papers compared to baselines. THE-Tree, with its rich, context-aware semantic relations, demonstrates markedly superior performance, validating its value for scientific foresight.

🔬 Supplementary Materials

Data Collection and Dataset Construction

The construction of THE-Tree begins with a comprehensive data collection and processing pipeline from multiple academic sources. A crucial step is the detailed dataset construction from scientific surveys, which transforms unstructured narratives into a structured format suitable for building the evolution trees.

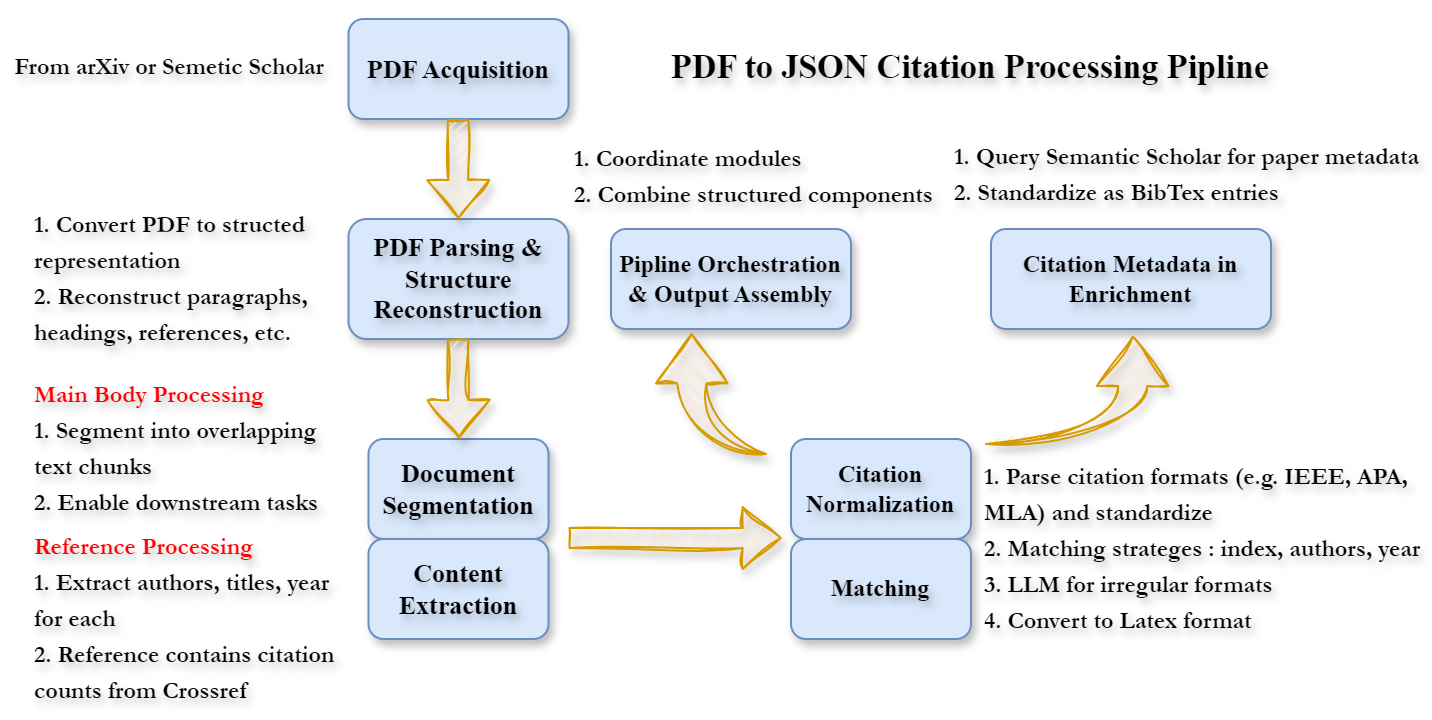

The figure above shows the document processing and metadata extraction pipeline.

Dataset Statistics

Following this methodology, we constructed a dataset comprising 88 THE-Trees.

Metric	Total	Avg/Topic	Avg/THE-tree	Avg/human select
Processed topics	88	--	--	--
Paper nodes	35,392	402.18	103.14	46.49
Paper edges	140,616	1597.91	255.57	204.67

THE-Tree Data Structure

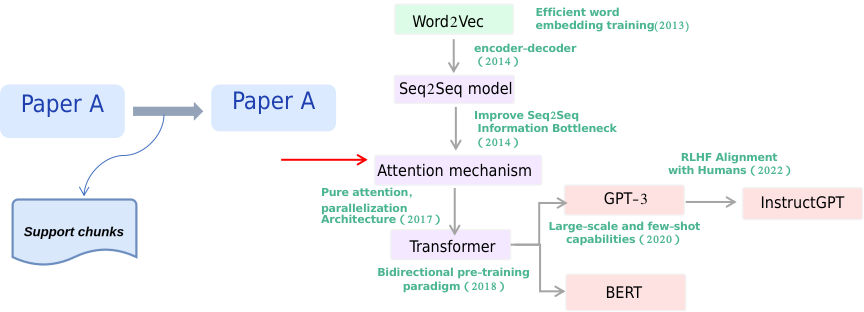

Each node and edge in a THE-Tree encapsulates rich information. Nodes store metadata about papers, while edges define the evolutionary relationships, including semantic meaning, textual evidence, and validation scores from our RA-NLI mechanism.
